Buy Decorative Grilles
|
 |
|
|
Real Interwoven Solid Brass and Stainless Steel Grilles
High quality grilles hand made to order | Product Info.
Priced and made to your required grille dimensions.
Various combinations of aperture size, material and wire mesh can be chosen. |
These grilles are also available Antiqued or with Bronze, Nickel or Chrome plating (at additional expense). |
| Examples of Interwoven Grilles (Pictured against a red background) |
Description:
Interwoven Diamond Brass Grille,
3mm Wide Reeded Brass,
10mm Diamond,
Fine Wire Mesh Backing.
Product Ref: GIWD/3R/10A/FM
|
(Click image to enlarge)
| Notes:
- Made by hand to required size.
- Cannot be cut by customer.
More... |
|
|

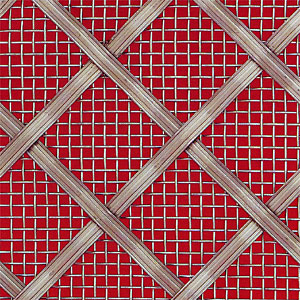

Description:
Interwoven Diamond Stainless Steel Grille,
5mm Wide Reeded Stainless Steel,
25mm Diamond,
Large Mesh Backing.
Product Ref:
GIWD-SS/5R/25A/LM-SS |
(Click image to enlarge)
| Notes:
- Made by hand to required size.
- Cannot be cut by customer.
More... |
|
|
Description:
Interwoven Diamond Stainless Steel Grille,
5mm Wide Reeded Stainless Steel,
10mm Diamond,
No Mesh Backing.
Product Ref:
GIWD-SS/5R/10A/NM
|
(Click image to enlarge)
| Notes:
- Made by hand to required size.
- Cannot be cut by customer.
More... |
|
|
Description:
Interwoven Square Stainless Steel Grille,
5mm Wide Plain Stainless Steel,
25mm Square,
Fine Mesh Backing.
Product Ref:
GIWS-SS/5P/25A/FM-SS
|
(Click image to enlarge)
| Notes:
- Made by hand to required size.
- Cannot be cut by customer.
More... |
|
| Examples of Plating and Treatments applied to the Natural Brass
(Pictured against a red background) |
Description:
Interwoven Square Antique Brass Grille,
3mm wide plain brass,
10mm Square,
Large Mesh Backing
Product Ref:
GIWS-AB/3P/10A/LM-AB
|
(Click image to enlarge)
| Notes:
- Made by hand to required size.
- Cannot be cut by customer.
More... |
|
| Antiqued, Bronze, Nickel or Chrome plating are finishes applied to natural brass at extra expense.
To view more pictures of the plating and treatment finishes available, please visit the lower part of our Regency Brass page.
To specify your own styling for this type of grille, please see the table at the bottom of the page |
|
Helpful Information:
This is by far our most expensive range of grilles due to the quality of materials and the labour involved in manufacture.
The biggest factor that affects pricing for this product is aperture size. The smaller the aperture, the more material and labour is involved in manufacture. Prices can therefore vary considerably upon this choice.
The second biggest factor that affects pricing for this product is adding a plating or treatment finish to the brass. This will also increase delivery timescales.
The reeded design of woven metal is more expensive than plain.
Adding a backing mesh also increases cost
. |
|
Interwoven Brass and Stainless Steel Grilles - Specifying
(Any combination of style, metal, width, aperture and mesh can be chosen)
If you cannot see your desired combination above, you can specify your interwoven preference using the following notation:
GRILLE STYLE / METAL WIDTH / APERTURE SIZE / BACKING MESH CHOICE
(See examples above) | Choose Grille Style
Select from: | Choose Metal Width and Style
Select from: | Choose Aperture Size
Select from: | Choose Wire Mesh Backing
Select from: | Interwoven Brass Diamond = GIWD Interwoven Brass Square = GIWS
| Add the following suffix for more options: | | Stainless Steel | - SS | | Chrome | - CH | | Satin Chrome | - SCH | | Antique Brass | - AB | | Bronze | - BZ | | Nickel | - NK | | Satin Nickel | - SNK | e.g.
Interwoven Stainless Steel Diamond = GIWD-SS |
(Unless requested otherwise, any backing mesh chosen is always assumed to be the same finish.) | Plain 3mm = 3P Plain 5mm = 5P
Reeded 3mm = 3R Reeded 5mm = 5R | 6mm = 6A
8mm = 8A
10mm = 10A
13mm = 13A
19mm = 19A
25mm = 25A | No Mesh = NM
Fine = FM
Large = LM
| Add the following suffix for more options: | | Stainless Steel | - SS | | Chrome | - CH | | Satin Chrome | - SCH | | Antique Brass | - AB | | Bronze | - BZ | | Satin Nickel | -SNK | | Nickel | - NK | e.g.
Fine Stainless Steel Mesh = FM-SS |
| Notes:
Finishes other than natural brass and stainless steel are additional treatments applied to brass. This increases price and delivery time.
You may also choose contrasts of the above finishes.
Maximum plating width = 1580mm | Notes:
Our Interwoven grilles are clear lacquered to maintain their appearance and resist any possible tarnishing. | Notes: | Notes:
Our Interwoven backing meshes are clear lacquered to maintain their appearance and resist any possible tarnishing. |
|
Additional Information - General Technical, Construction and Fitting:
- Symmetry / Alignment: Interwoven grilles are manufactured symmetrically about the horizontal and vertical centre lines. Same design grilles will therefore pattern match when fitted adjacent to each other along the same centre line (when manufactured on the same order).
- Displayable Sides: This product has only one displayable facing side.
- Sizing: Your decorative grille will be manufactured to the size requested. We do not add any additional amount to fix through at the edges to secure behind your opening. You will need to include this in your required dimensions. (We would recommend approx. 10 to 15mm all around, in a typical application.)
-
Size Tolerances: Grilles are manufactured to a tolerance of +/- 2mm per supplied dimension.
PLEASE NOTE that grilles ordered without a
backing mesh can concertina slightly before
installation. Simply tap the elongated side gently
until you have reset the height and width.
-
Depth: The depth of this grille at the edge, is approx. 3mm.
-
Installation: To install,
simply use a small screw and washer though the backing mesh at the rear edge, at approx. 40mm intervals. There is no need to rebate the grille behind the opening unless the rear will be visible and you wish to provide a neater finish. You may however, fit how you wish. No fixings, beading or framing is supplied. Grille edges are left as "raw" cut edges and are not intended for display.
-
Construction: Interwoven grilles are hand woven and fixed with solder at the edges to secure the weave. If a backing mesh is chosen, this will be attached by solder to the rear but in some circumstances glued depending on the metals chosen.
Finishes Note: Some finishes are applied by hand and therefore some variation may occur from our images, examples and orders placed at different times.
-
Clear Lacquering:
All natural brass grilles are sprayed with a fine
clear lacquer to resist tarnishing and maintain
appearance unless specifically requested otherwise.
(This can be noted in the Comments box of our order
form)
|
For competitive prices on this product please Click Here.
|
| |
