Regency Diamond Decorative Brass Grilles

Natural Brass Examples:

Back to Natural Brass Examples

Back to Plated Brass Examples

Click Here for an Instant Online Quotation

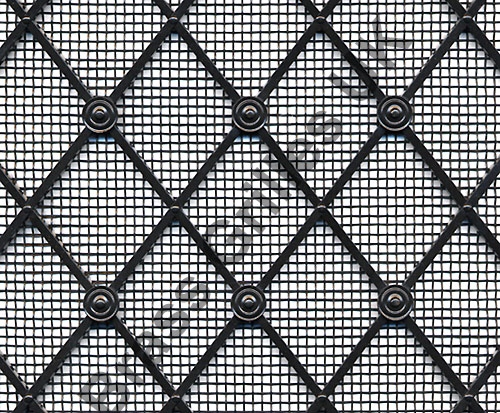

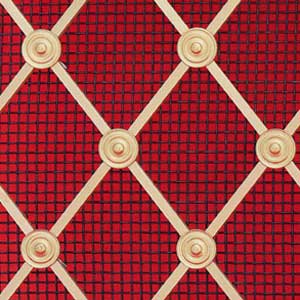

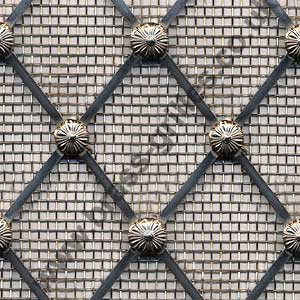

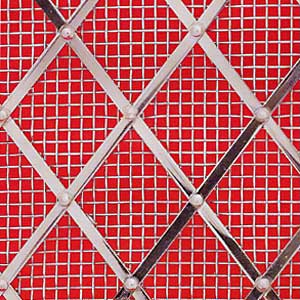

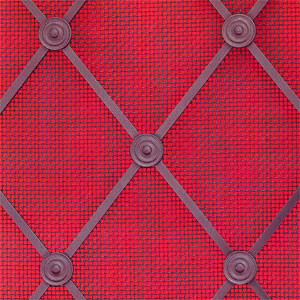

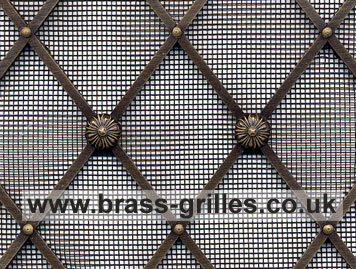

The pictures above are examples of possible combinations of diamond size, rosettes, backing mesh and finish. If you cannot see your desired Regency grille above, you can specify your preference using the following notation:

GRILLE STYLE / DIAMOND SIZE / ROSETTE STYLE / BACKING MESH
(See example Product References above)

(Diamonds are measured between two diagonal bars as shown in Notes below)

25mm

41mm

54mm

All Rivets = RIV

All Plain = PLR

Alternate Plain = APLR

All Floral = FLR

Alternate Floral = AFLR

* All Oxford = OXR

*Alternate Oxford = AOXR

* All Honeycomb = HOR

* Alternate Honeycomb = AHOR

* These rosette types are only available for natural brass finished grilles.

No Mesh = NM

Fine = FM
(Also sold separately and can be viewed here)

Large = LM
(Also sold separately and can be viewed here)

Please Note that backing meshes do not match the foreground diamond finish for all design combinations. E.g. an all Antique Brass grille will have an even dark brown backing mesh and an all Antique Copper grille backing mesh is an even black.
Please see the descriptions in the left column labelled "Choose Grille & Finish".
(Only when the foreground diamond and backing mesh differ will the backing finish be as described as it can be processed individually before attaching.)

Regency grilles apart from polished chrome and polished nickel are treated with a fine clear lacquer to enhance and maintain their appearance unless requested otherwise.

Notes:
Plating and treatments such as chrome plating  or antiquing are processes applied to the solid brass grille, increasing price and delivery time.

You may also choose contrasts of the above finishes.
Maximum Dimensions:
 -GRB= 2200mm (approx. 86 1/2 inches)
 -GRNK, GRSNK = 1900mm (approx. 75 inches by 27 inches)
 -GRAB = 1830mm (approx. 72 inches)
 -GRBZ = 1524mm (approx. 60 inches)

Notes:

Notes:
Regency grilles apart from polished chrome and polished nickel are treated with a fine clear lacquer to enhance and maintain their appearance unless requested otherwise.

Notes:
Regency grilles apart from polished chrome and polished nickel are treated with a fine clear lacquer to enhance and maintain their appearance unless requested otherwise.

Additional Information - Technical, Construction and Fitting:

• Regency brass grilles are manufactured symmetrically about the horizontal and vertical centre lines. Same design grilles will therefore pattern match when fitted adjacent to each other along the same centre line (when manufactured on the same order).
• Your decorative grille will be manufactured to the size requested. We do not add any additional amount to fix through at the edges to secure behind your opening. You will need to include this in your required dimensions. (We would recommend approx. 10 to 15mm all around, in a typical application.)
• To allow flush fixing behind an aperture, rosettes are replaced by rivets if they would fall within approx. 20mm of the grille edge.
• To install, simply use a small screw and washer though the backing mesh at the rear edge, at approx. 40mm intervals. There is no need to rebate the grille behind the opening unless the rear will be visible and you wish to provide a neater finish. You may however, fit how you wish. No fixings, beading or framing is supplied. Grille edges are left as "raw" cut edges and are not intended for display.
• The depth of this grille at the edge, is approx. 5mm, depending on your style choices. (3mm square brass rod + mesh backing at 0.5mm or 1mm (fine/large) + a possible rivet head with it's turned down pin at the rear. Total = approx. 5mm). At the point of a rosette, depth is approx. 6mm.
• Please note that this style of grille has one displayable face and is constructed using traditional methods. The rear of the grille contains pins from your chosen rosette/rivet which secure the lattice construction and hold the backing mesh in place (if specified). Rosette/rivet pins by design have points which are turned down flush to the rear. This may be a consideration for you depending on your application.
  Please CLICK HERE to view the rear of an example Regency brass grille.
  (Not all pins penetrate the backing mesh which is due to the stages required in the build up of the product and is normal)
• Some finishes are applied by hand, may vary from images and cannot be made to match exactly to previous orders of the same finish.
• Grilles are manufactured to a tolerance of +/- 2mm per supplied dimension.
